Digital Circular Chart Recorder
– Pressure, Temperature, Voltage, Current and Process
Circular chart recorders are available in 3 different sizes of the charts i.e. 4”, 6” and 11”.

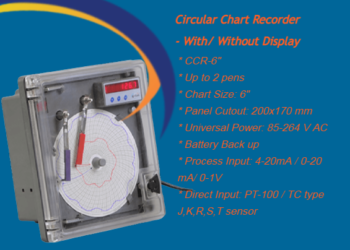

If you want better readability in small space, this 6” chart recorder is a perfect fit.
These recorders are widely used in low-temperature equipment, pharma autoclave, blood banks, incubators and many more places. It takes direct inputs from RTD Pt-100 / Thermocouples / process inputs like 4-20mA / 0-20mA / 0-1V. Standard chart speed varies from 1 hour/revolution to 255 hours/revolution.
These recorders are microcontroller based. Crystal controlled chart drive ensures the good chart speed accuracy. Stepper motors for both pen and chart drive ensures no lag and no backlash.
With a cutout of 200 x170 mm and smallest depth, makes it very convenient to use. Transparent polycarbonate door makes the chart visible from distance. They come with a universal power supply as a standard feature. Other power supply inputs are also available.
FEATURES:
- 6” Chart Width
- Digital, 8 digit ultra-bright LED Numeric / semi alphabetic Display
- Single & Dual Analog Input Channel
- Direct Input standard PT-100 sensor
- Standard Input for popular Thermocouples like J/K/R/S/T
- Process Input through 4-20mA / 0-20mA / 0-1V
- Cost effective fixed sensor input or Field configurable sensor input
- 1 hour/rev to 255 hour/rev chart speed
- Universal Power Supply 85-264 V AC, 47-63 Hz
- Other power supply inputs on request
- Battery Back up
Call +65-68036374 or e-mail us for specific availability.
